AWM 2468
PVC Insulated PVC Sheathed Cords
PVC 绝缘护套线
带状平行排列
间距为2.0mm和2.5mm之并排线，便于插进印刷线路板每一个接插孔内
Rating:300V 80℃
Standard:UL 758UL 2556 CSA-C 22.2 No.210.2
| Specification (规格) |
Conductor construction 导体结构 (n/mm) |
芯数 | 绝缘 | Max Conductor resistance at 20℃ 20℃时导体电阻最大值 Ω/km |
||
| AWG 线规 |
Inslation thickness 绝缘厚度 (mm) |

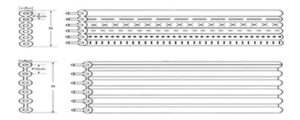

Reference diameter 参考外径 A×B(mm) |
Solid | Stranded | ||
| 26 | 7/0.16 | 2 | 0.38 | 1.4×2.9 | 142.79 | 148.94 |
| 3 | 0.38 | 1.4×4.4 | ||||
| 4 | 0.38 | 1.4×5.9 | ||||
| 5 | 0.38 | 1.4×7.4 | ||||
| 6 | 0.38 | 1.4×8.9 | ||||
| 7 | 0.38 | 1.4×10.4 | ||||
| 8 | 0.38 | 1.4×11.9 | ||||
| 9 | 0.38 | 1.4×13.4 | ||||
| 10 | 0.38 | 1.4×14.9 | ||||
| 11 | 0.38 | 1.4×16.4 | ||||
| 12 | 0.38 | 1.4×17.9 | ||||
| 24 | 11/0.16 | 2 | 0.38 | 1.5×3.1 | 89.39 | 93.25 |
